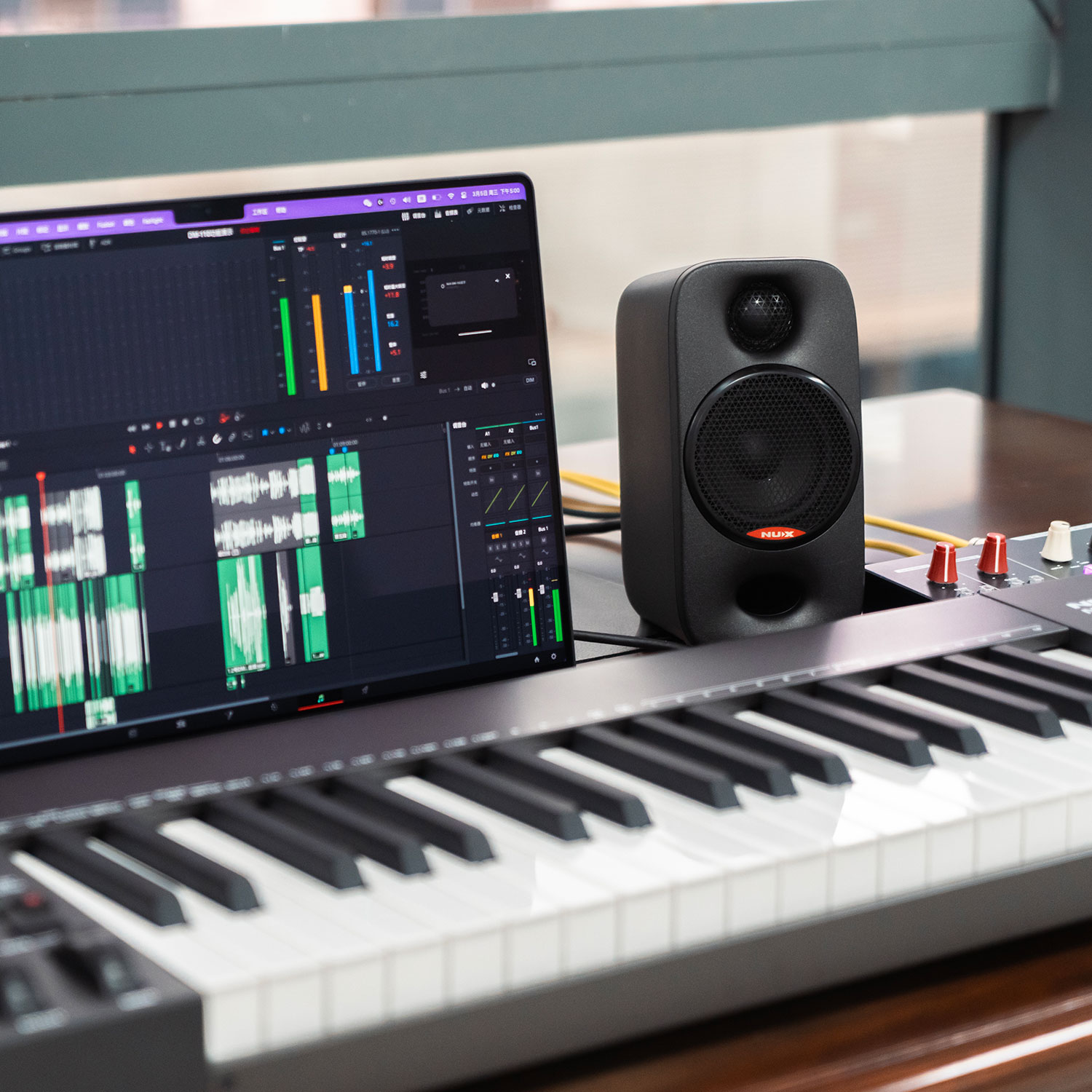

Axon 3 is a stereo pair of super compact reference quality speakers for nearfield monitoring in your project studio or anywhere that you need to playback and mix recorded material. The system comprises an active speaker with integral stereo bi-amplifier and a satellite unit, each with a 3" woofer and 3/4" silk dome tweeter, delivering a total of 90Wrms. Neodymium magnets give uncompromising efficiency and frequency response down to 55Hz with up to 107dB output, comparable with speakers twice this size. In addition to the wide and accurate response, the system has an inbuilt stereo DSP for tailoring the tonal profile and compensating for room acoustics, all editable from the AXON STUDIO software and app. Inputs are on 2 x 6.3mm jack, 3.5mm stereo jack or 2 x RCA. In addition, audio may be streamed wirelessly over Bluetooth or digitally via the USB-C audio interface for convenient integration into a PC/Mac recording setup. Supplied with magnetic feet to offer different placement angles and a bespoke transit bag to make this a truly portable set that lets you take the sound you know to wherever you need to mix.
DSP editable via the AXON STUDIO software and app
Custom designed tuned bass ports
Bluetooth receiver
USB-C digital audio interface
Supplied with magnetic feet and padded transit bag
Crossover frequency 3kHz
Power supply 24Vdc 2.5 A (adaptor included)
Frequency response : -3dB 55Hz - 20kHz
Output power : rms 30W + 15W each speaker (90W total)
SPL max. 107dB
Woofer 75mmØ (3") neodymium magnet
Tweeter 19mmØ (3/4") silk dome
Construction ABS moulded cabinet
Input impedance 10k ohms (-10dBu)
Amplifier : construction Class-D
Inputs 2 x 6.3mm T-S jack, 2 x RCA, 1 x 3.5mm stereo jack
USB port USB-C (audio interface and software control)
Bluetooth version v5.0 (AVRCP Profile V1.6, A2DP Profile V1.3, HFP Profile V1.7)
Sampling format 48kHz 24bits
Dimensions (each) 204.5 x 150 x 94mm
Weight (per set) 1.98kg
