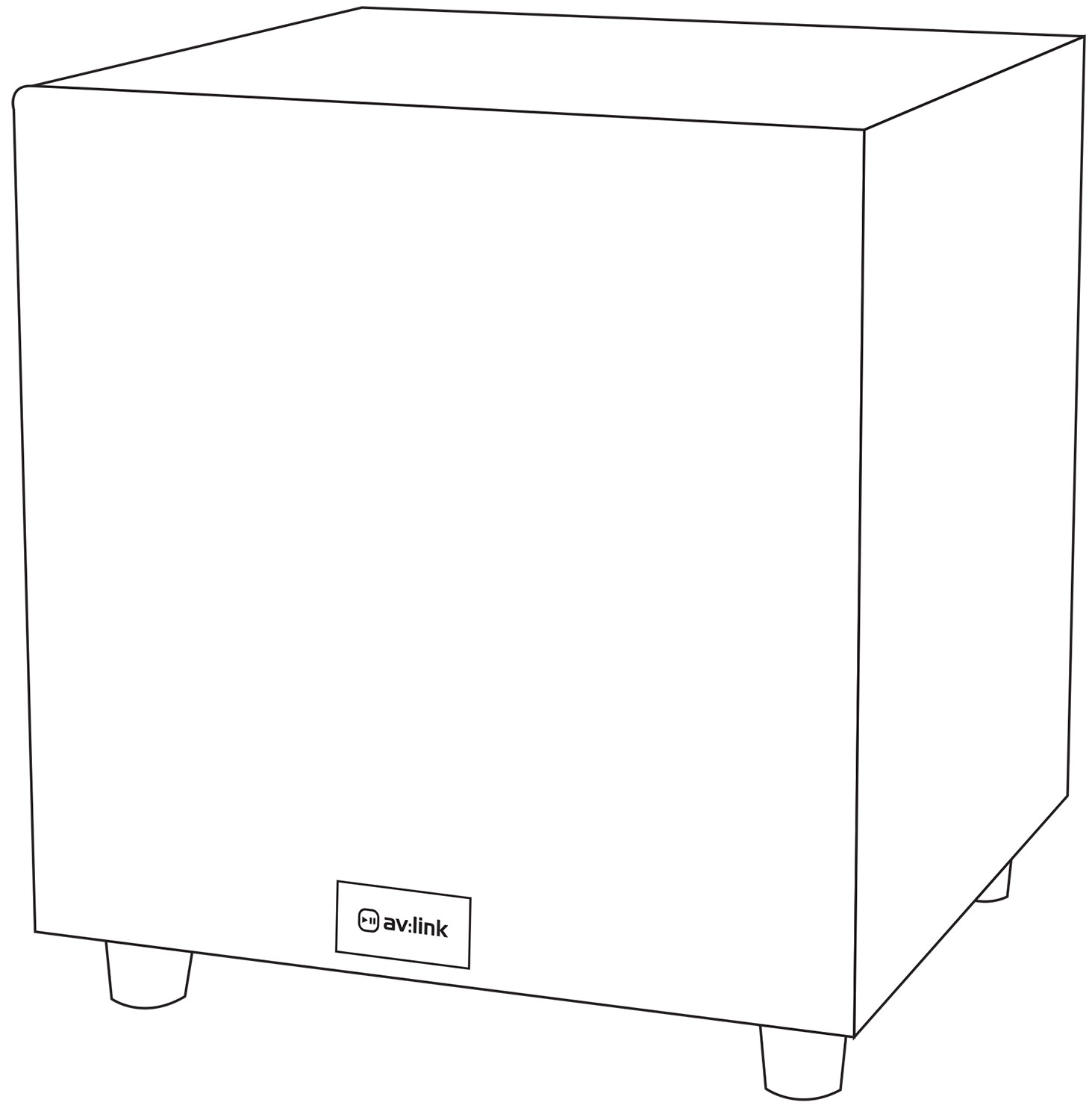

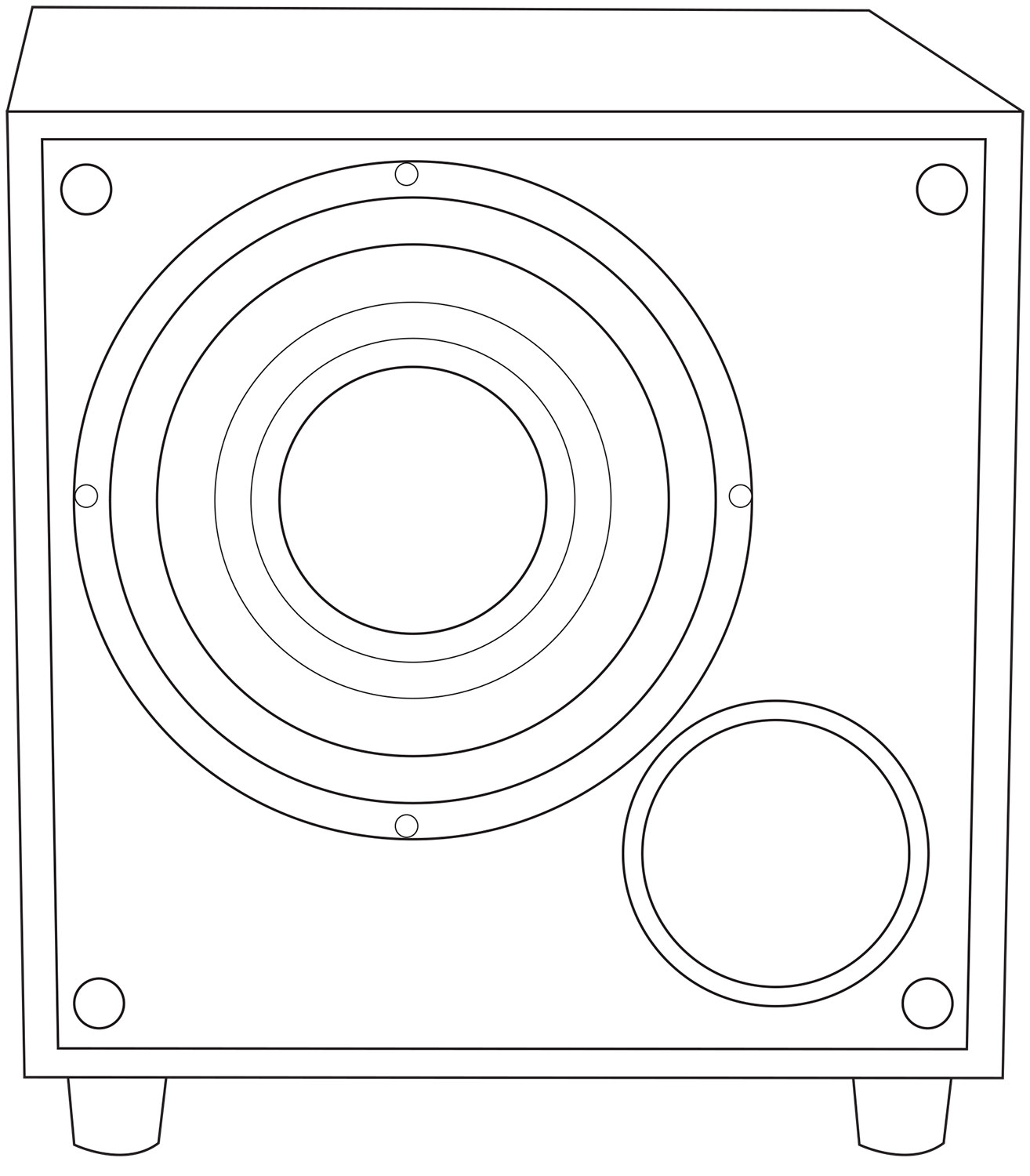

Active sub cabinet with 8" (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. "Auto Off" function deactivates the amplifier when no incoming signal is detected to conserve energy.
Integral amplifier with variable crossover Auto off function conserves energy Speaker level or line level inputs
Power supply 220-250Vac, 50/60Hz (Fig 8) Connections Speaker level input terminals, RCA line level in Frequency response 50 - 250Hz Peak output 200W Rated output power 100W Driver 20cm (8") reinforced cone Dimensions 300 x 330 x 300mm Weight 7.44kg Cut-off frequency 45 - 150Hz Speaker : impedance 4 Ohms
