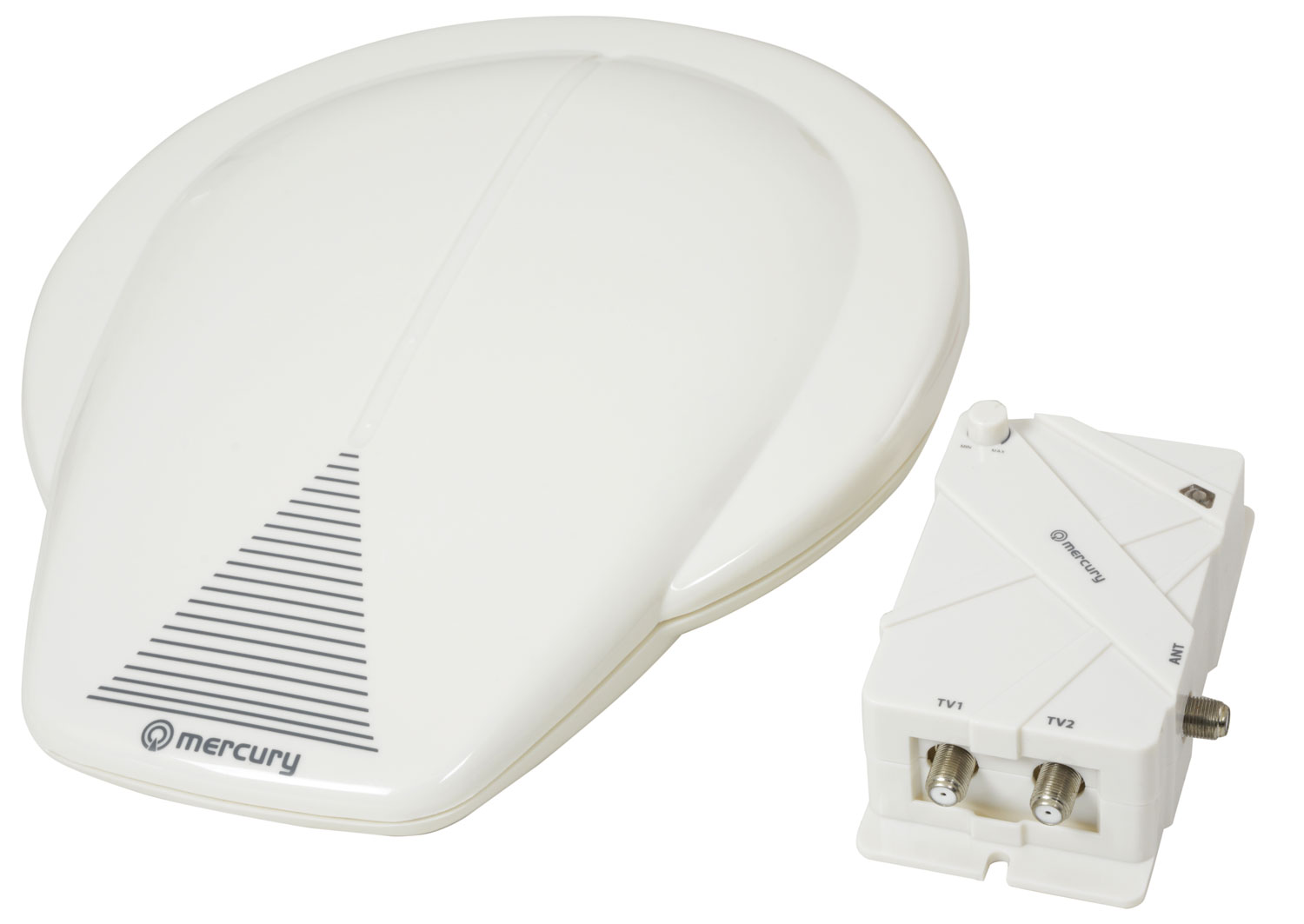

Outdoor HDTV aerial specially designed for camping and marine use and compatible with Digital Terrestrial TV and DAB/FM radio signals. The built-in amplifier gives a clear picture even if the signal reception is weak. Can be mounted on a pole of up to 38mmØ using the clamp supplied.
Ideal for installation on caravans, campers or boats

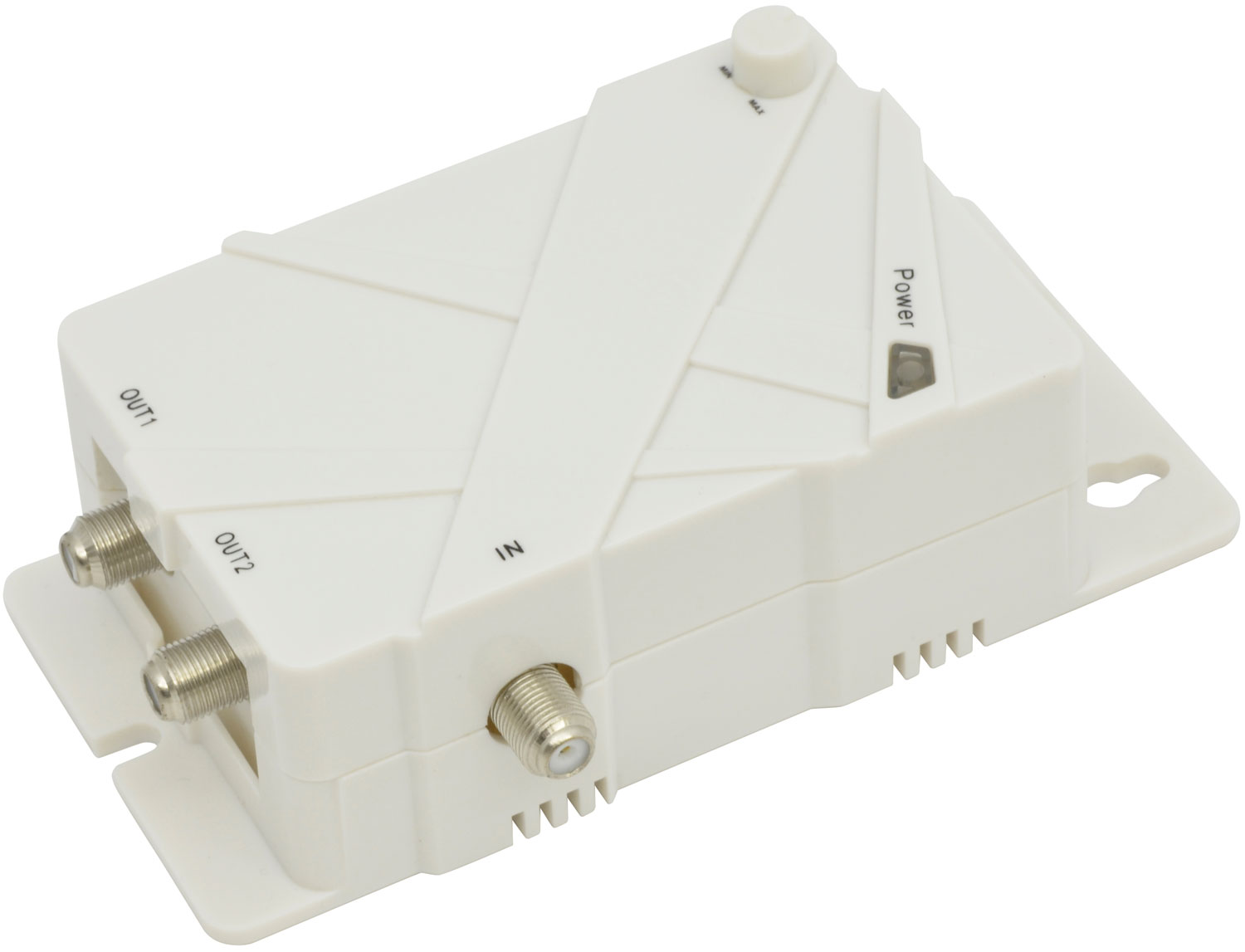

Features a splitter to connect a second radio or TV set
Supplied with mounting materials, 6m connection cable and power supply
Unidirectional with built-in high gain amplifier
Compatible with Digital Terrestrial TV and DAB/FM radio signals
Integrated LTE signal filter avoids interference from 4G/5G mobile signals
Power supply 230Vac, 50Hz (3W) / 12Vdc, 50mA
Frequency range : UHF 470MHz – 694MHz(5G)
Frequency range : VHF 40MHz – 230MHz
Gain : UHF 20dB
Gain : VHF 20dB
Max. loss 2dB
Output level 100dBµV max.
Weight 1.5kg
Impedance 75 ohms
Dimensions 260 x 334 x 80mm
